Mechanical test report
Available when the required tests are agreed before production.
1/2Available with the order
Order assurance
The supplier has confirmed that the options below can be agreed for this product. The exact scope is fixed in the quotation or order.Dimensional inspection report
Can be provided for the agreed inspection scope.
EN 10204 3.1 material certificate
Can be included when agreed in the order.
Certificate of conformity
Can be issued against the confirmed order requirements.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Available options
Material
Grade
Finish
222 sizes

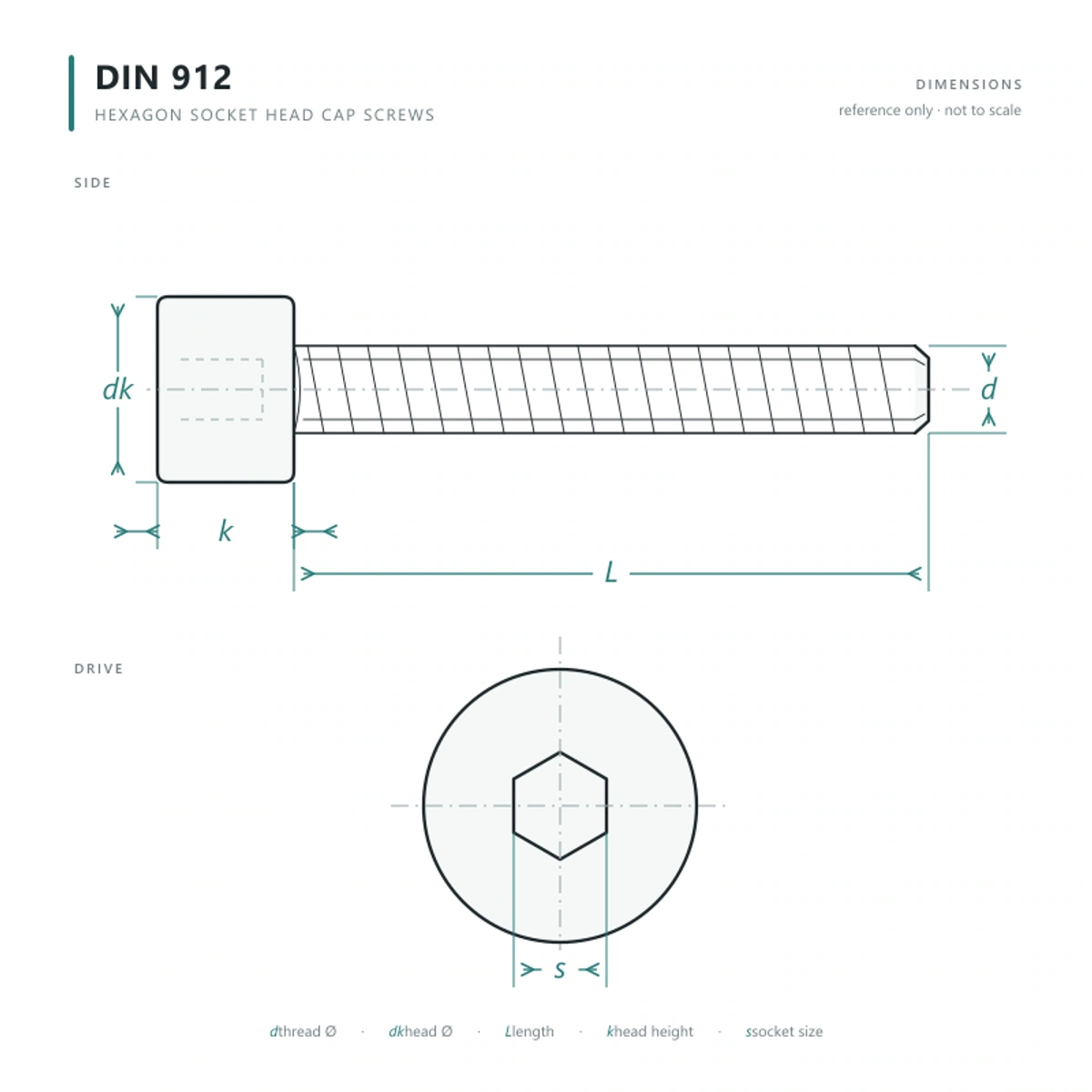

| d | L | b | P | s | dk | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| M4 | 40 | 20 | 0.7 | 3 | 7 | 10000 | |
| M4 | 50 | 20 | 0.7 | 3 | 7 | 10000 | |
| M5 | 10 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 12 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 16 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 20 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 25 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 30 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 35 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 40 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M5 | 45 | 22 | 0.8 | 4 | 8.5 | 10000 | |
| M6 | 10 | 24 | 1 | 5 | 10 | 10000 | |
| M6 | 12 | 24 | 1 | 5 | 10 | 10000 | |
| M6 | 16 | 24 | 1 | 5 | 10 | 10000 | |
| M6 | 20 | 24 | 1 | 5 | 10 | 10000 | |
| M6 | 25 | 24 | 1 | 5 | 10 | 10000 |
DIN 912 | M4 x 40
dM4
L40
b20
P0.7
s3
dk7
MOQ10000
DIN 912 | M4 x 50
dM4
L50
b20
P0.7
s3
dk7
MOQ10000
DIN 912 | M5 x 10
dM5
L10
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 12
dM5
L12
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 16
dM5
L16
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 20
dM5
L20
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 25
dM5
L25
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 30
dM5
L30
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 35
dM5
L35
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 40
dM5
L40
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M5 x 45
dM5
L45
b22
P0.8
s4
dk8.5
MOQ10000
DIN 912 | M6 x 10
dM6
L10
b24
P1
s5
dk10
MOQ10000
DIN 912 | M6 x 12
dM6
L12
b24
P1
s5
dk10
MOQ10000
DIN 912 | M6 x 16
dM6
L16
b24
P1
s5
dk10
MOQ10000
DIN 912 | M6 x 20
dM6
L20
b24
P1
s5
dk10
MOQ10000
DIN 912 | M6 x 25
dM6
L25
b24
P1
s5
dk10
MOQ10000
Product description
Hexagon socket head cap screw to DIN 912 with cylindrical head and internal hexagon drive. Supplied in carbon steel with blackened finish, in property classes 12.9, 10.9, 8.8 and 4.8. Available sizes include M4, M5 and M6 in lengths from 10 mm to 50 mm; other dimensions to customer specification. For quotation, specify diameter, length, property class and quantity.
Key features
- Cylindrical head with hexagon socket drive
- Blackened finish
- Property classes 12.9, 10.9, 8.8, 4.8
- Sizes M4–M6, lengths 10–50 mm
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What standards and sizes are available for Hexagon Socket Head Cap Screw?
Execution standard: DIN 912. The confirmed specification table covers M4–M30 diameters and 10–300 lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for Hexagon Socket Head Cap Screw?
Material: Carbon Steel; Property Class / Grade: 12.9, 10.9, 8.8, 4.8; Finish: Blackened. Availability should be confirmed against the selected specification and order quantity.
What quality documents can be provided for Hexagon Socket Head Cap Screw?
Mechanical test report, Dimensional inspection report, EN 10204 3.1 material certificate, Certificate of conformity can be provided when the exact document scope is agreed in the quotation or order.
What are the order, packing and sample terms for Hexagon Socket Head Cap Screw?
MOQ: 300–10000 pcs. Confirmed packing options include Bulk carton packing, Small boxes with outer cartons, Palletized shipment.
What information should be included in a quotation request for Hexagon Socket Head Cap Screw?
Please provide the required standard, diameter or size, length, material, property class or grade, finish, quantity. A drawing or sample reference is useful when the requirement is non-standard.
