dM6
P · mm1
eyeBaseDiameter20
eyeOutsideDiameter36
More dimensions
eyeInsideDiameter20
eyeBaseHeight8.5
overallHeight36
eyeThickness8
eyeBaseWidth10
Execution standard reference

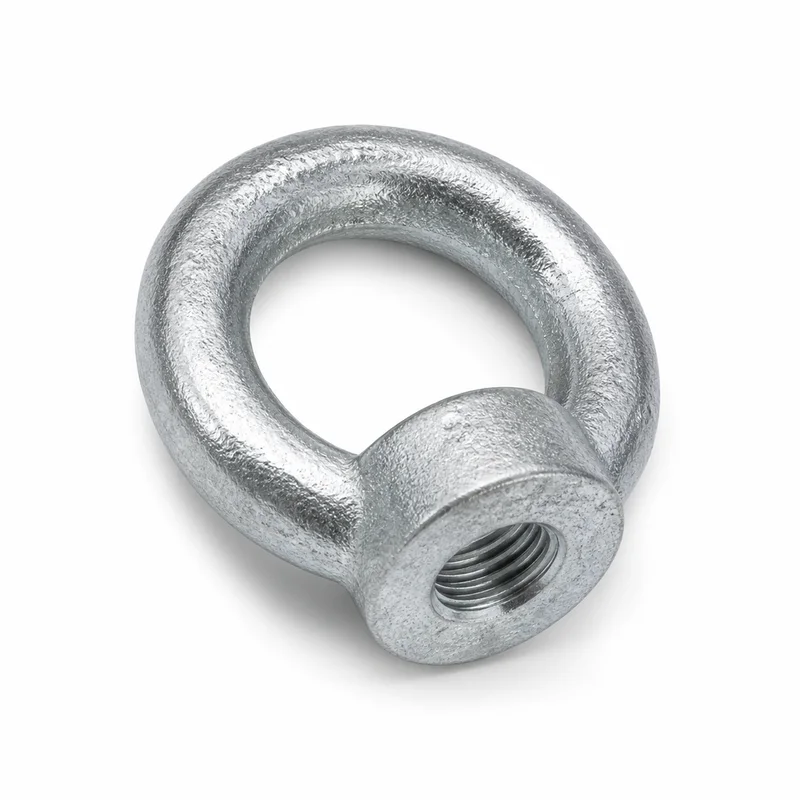

DIN 582 Lifting eye nuts
Technical reference and products currently listed under this standard. Exact contractual requirements must follow the edition specified in the purchase order.
nutCurrent standardDimensions available
Dimensional reference
Shows dimensions already stored in the standard library. Missing values are not filled automatically.
DIN 582 dimensional reference
Lifting eye nuts
| dThread size | PPitch · mm | eyeBaseDiameterd2 · Base Diameter (mm) | eyeOutsideDiameterd3 · Eye Outside Diameter (mm) | eyeInsideDiameterd4 · Eye Inside Diameter (mm) | eyeBaseHeighte · Base Height (mm) | overallHeighth · Overall Height (mm) | eyeThicknessk/s · Eye Thickness (mm) | eyeBaseWidthm · Base Width (mm) |
|---|---|---|---|---|---|---|---|---|
| M6 | 1 | 20 | 36 | 20 | 8.5 | 36 | 8 | 10 |
| M8 | 1.25 | 20 | 36 | 20 | 8.5 | 36 | 8 | 10 |
| M10 | 1.5 | 25 | 45 | 25 | 10 | 45 | 10 | 12 |
| M12 | 1.75 | 30 | 54 | 30 | 11 | 53 | 12 | 14 |
| M16 | 2 | 35 | 63 | 35 | 13 | 62 | 14 | 16 |
| M20 | 2.5 | 40 | 72 | 40 | 16 | 71 | 16 | 19 |
| M24 | 3 | 50 | 90 | 50 | 20 | 90 | 20 | 24 |
| M30 | 3.5 | 65 | 108 | 60 | 25 | 109 | 24 | 28 |
| M36 | 4 | 75 | 126 | 70 | 30 | 128 | 28 | 32 |
dM8
P · mm1.25
eyeBaseDiameter20
eyeOutsideDiameter36
More dimensions
eyeInsideDiameter20
eyeBaseHeight8.5
overallHeight36
eyeThickness8
eyeBaseWidth10
dM10
P · mm1.5
eyeBaseDiameter25
eyeOutsideDiameter45
More dimensions
eyeInsideDiameter25
eyeBaseHeight10
overallHeight45
eyeThickness10
eyeBaseWidth12
dM12
P · mm1.75
eyeBaseDiameter30
eyeOutsideDiameter54
More dimensions
eyeInsideDiameter30
eyeBaseHeight11
overallHeight53
eyeThickness12
eyeBaseWidth14
dM16
P · mm2
eyeBaseDiameter35
eyeOutsideDiameter63
More dimensions
eyeInsideDiameter35
eyeBaseHeight13
overallHeight62
eyeThickness14
eyeBaseWidth16
dM20
P · mm2.5
eyeBaseDiameter40
eyeOutsideDiameter72
More dimensions
eyeInsideDiameter40
eyeBaseHeight16
overallHeight71
eyeThickness16
eyeBaseWidth19
Dimensional profile for standard lookup, product specifications, TDS and quotation workflows.
Available products
Quote against the correct standard.
Include sizes, material, finish, quantity and required documents.
