dM4
P · mm0.7
wingHubDiameterMax8
wingSpanMax20
More dimensions
wingThicknessMax1.9
wingHeightMax10.5
wingBodyWidth8
Execution standard reference

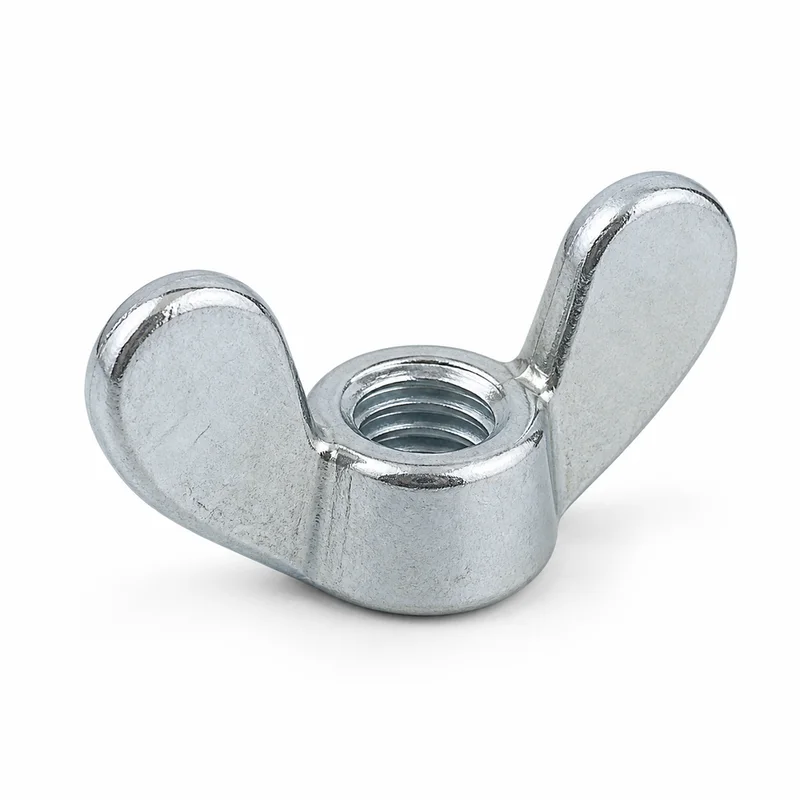

DIN 315 Wing nuts
Technical reference and products currently listed under this standard. Exact contractual requirements must follow the edition specified in the purchase order.
nutCurrent standardDimensions available
Dimensional reference
Shows dimensions already stored in the standard library. Missing values are not filled automatically.
DIN 315 dimensional reference
Wing nuts
| dThread size | PPitch · mm | wingHubDiameterMaxD2 · Hub Diameter (max) (mm) | wingSpanMaxE · Overall Wing Span (max) (mm) | wingThicknessMaxG · Wing Thickness (max) (mm) | wingHeightMaxH · Wing Height (max) (mm) | wingBodyWidthA · Body Width (mm) |
|---|---|---|---|---|---|---|
| M4 | 0.7 | 8 | 20 | 1.9 | 10.5 | 8 |
| M5 | 0.8 | 11 | 26 | 2.3 | 13 | 10 |
| M6 | 1 | 13 | 33 | 2.3 | 17 | 12 |
| M8 | 1.25 | 16 | 39 | 2.8 | 20 | 16 |
| M10 | 1.5 | 20 | 51 | 4.4 | 25 | 20 |
| M12 | 1.75 | 23 | 65 | 4.9 | 33.5 | 23 |
| M14 | 2 | 28 | 72 | 6 | 36 | 23 |
| M16 | 2 | 29 | 73 | 6.4 | 37.5 | 28 |
| M20 | 2.5 | 35 | 90 | 6.9 | 46.5 | 36 |
| M24 | 3 | 44 | 110 | 9.4 | 56.5 | 45 |
dM5
P · mm0.8
wingHubDiameterMax11
wingSpanMax26
More dimensions
wingThicknessMax2.3
wingHeightMax13
wingBodyWidth10
dM6
P · mm1
wingHubDiameterMax13
wingSpanMax33
More dimensions
wingThicknessMax2.3
wingHeightMax17
wingBodyWidth12
dM8
P · mm1.25
wingHubDiameterMax16
wingSpanMax39
More dimensions
wingThicknessMax2.8
wingHeightMax20
wingBodyWidth16
dM10
P · mm1.5
wingHubDiameterMax20
wingSpanMax51
More dimensions
wingThicknessMax4.4
wingHeightMax25
wingBodyWidth20
dM12
P · mm1.75
wingHubDiameterMax23
wingSpanMax65
More dimensions
wingThicknessMax4.9
wingHeightMax33.5
wingBodyWidth23
Dimensional profile for standard lookup, product specifications, TDS and quotation workflows.
