1/2Nuts
Wing Nut, A2-70
DIN 315 · M4–M12 · Carbon Steel, Stainless Steel
● Available for quotation
- Material
- Carbon Steel, Stainless Steel
- Finish
- Plain
- Nut Type
- Wing Nut
- Property Class / Grade
- A2-70
- moq
- 10000
Lead time: 10 Days
Share
Available with the order
Order assurance
The supplier has confirmed that the options below can be agreed for this product. The exact scope is fixed in the quotation or order.Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Buyer-specified labels
Available after label content and placement are approved.
Available options
Material
Grade
Carbon Steel
Stainless Steel
Finish
6 sizes

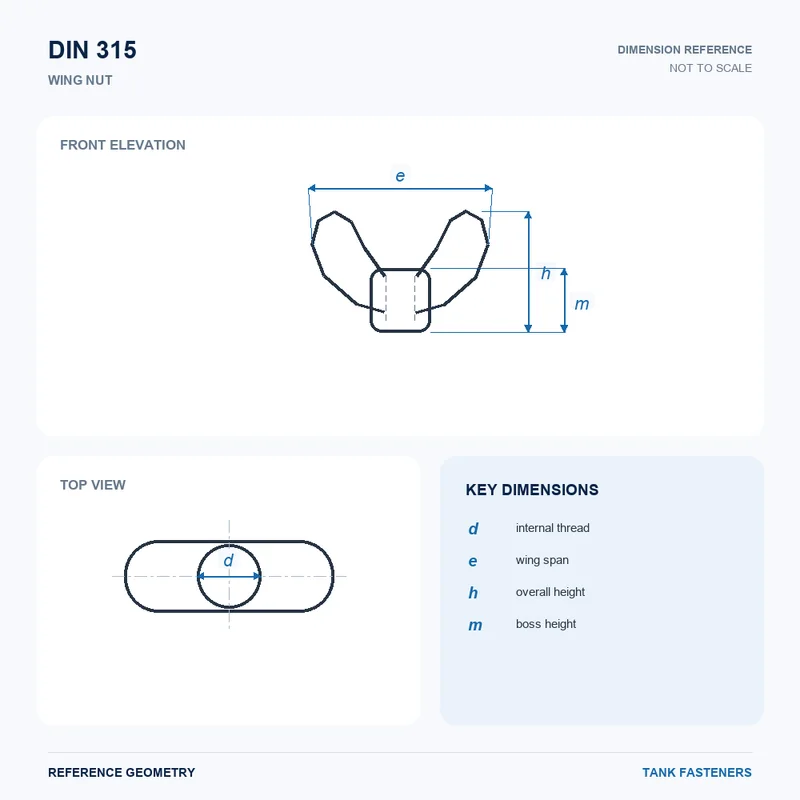

| d | P | D2 | E | G | H | Quantity and inquiry |
|---|---|---|---|---|---|---|
| M4 | 0.7 | 8 | 20 | 1.9 | 10.5 | |
| M5 | 0.8 | 11 | 26 | 2.3 | 13 | |
| M6 | 1 | 13 | 33 | 2.3 | 17 | |
| M8 | 1.25 | 16 | 39 | 2.8 | 20 | |
| M10 | 1.5 | 20 | 51 | 4.4 | 25 | |
| M12 | 1.75 | 23 | 65 | 4.9 | 33.5 |
DIN 315 | M4
dM4
P0.7
D28
E20
G1.9
H10.5
DIN 315 | M5
dM5
P0.8
D211
E26
G2.3
H13
DIN 315 | M6
dM6
P1
D213
E33
G2.3
H17
DIN 315 | M8
dM8
P1.25
D216
E39
G2.8
H20
DIN 315 | M10
dM10
P1.5
D220
E51
G4.4
H25
DIN 315 | M12
dM12
P1.75
D223
E65
G4.9
H33.5
Product description
Wing nut manufactured to DIN 315 with A2-70 stainless steel property class and plain finish. Available in metric sizes M4 through M12 with standard pitches. The wing design allows manual tightening and loosening without tools. Buyers should specify diameter, pitch, and quantity for quotation. Minimum order quantity is 10,000 pieces.
Key features
- A2-70 stainless steel property class
- Plain finish
- Wing design for manual operation
- Available in M4 to M12 sizes
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What standards and sizes are available for Wing Nut, A2-70?
Execution standard: DIN 315. The confirmed specification table covers M4–M12 diameters. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for Wing Nut, A2-70?
Material: Carbon Steel, Stainless Steel; Finish: Plain; Property Class / Grade: A2-70. Availability should be confirmed against the selected specification and order quantity.
What quality documents can be provided for Wing Nut, A2-70?
Dimensional inspection report can be provided when the exact document scope is agreed in the quotation or order.
What are the order, packing and sample terms for Wing Nut, A2-70?
Lead time: 10 Days. Confirmed packing options include Bulk carton packing, Palletized shipment, Small boxes with outer cartons, Buyer-specified labels.
What information should be included in a quotation request for Wing Nut, A2-70?
Please provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
