DIN 125 | M8
dNominal Diameter · mmM8
d1Inner Diameter · mm8.4
d2Outer Diameter · mm16
hWasher Thickness · mm1.6
Theoretical Masskg/1000 pcs1.83
1/4Available options
Material
Grade
Finish
8 sizes
| dNominal Diameter · mm | d1Inner Diameter · mm | d2Outer Diameter · mm | hWasher Thickness · mm | Theoretical Masskg/1000 pcs | Quantity and inquiry |
|---|---|---|---|---|---|
| M8 | 8.4 | 16 | 1.6 | 1.83 | |
| M10 | 10.5 | 20 | 2 | 3.57 | |
| M12 | 13 | 24 | 2.5 | 6.27 | |
| M16 | 17 | 30 | 3 | 11.3 | |
| M20 | 21 | 37 | 3 | 17.2 | |
| M24 | 25 | 44 | 4 | 32.3 | |
| M30 | 31 | 56 | 4 | 53.6 | |
| M36 | 37 | 66 | 5 | 92.1 |
DIN 125 | M10
dNominal Diameter · mmM10
d1Inner Diameter · mm10.5
d2Outer Diameter · mm20
hWasher Thickness · mm2
Theoretical Masskg/1000 pcs3.57
DIN 125 | M12
dNominal Diameter · mmM12
d1Inner Diameter · mm13
d2Outer Diameter · mm24
hWasher Thickness · mm2.5
Theoretical Masskg/1000 pcs6.27
DIN 125 | M16
dNominal Diameter · mmM16
d1Inner Diameter · mm17
d2Outer Diameter · mm30
hWasher Thickness · mm3
Theoretical Masskg/1000 pcs11.3
DIN 125 | M20
dNominal Diameter · mmM20
d1Inner Diameter · mm21
d2Outer Diameter · mm37
hWasher Thickness · mm3
Theoretical Masskg/1000 pcs17.2
DIN 125 | M24
dNominal Diameter · mmM24
d1Inner Diameter · mm25
d2Outer Diameter · mm44
hWasher Thickness · mm4
Theoretical Masskg/1000 pcs32.3
DIN 125 | M30
dNominal Diameter · mmM30
d1Inner Diameter · mm31
d2Outer Diameter · mm56
hWasher Thickness · mm4
Theoretical Masskg/1000 pcs53.6
DIN 125 | M36
dNominal Diameter · mmM36
d1Inner Diameter · mm37
d2Outer Diameter · mm66
hWasher Thickness · mm5
Theoretical Masskg/1000 pcs92.1
Product description

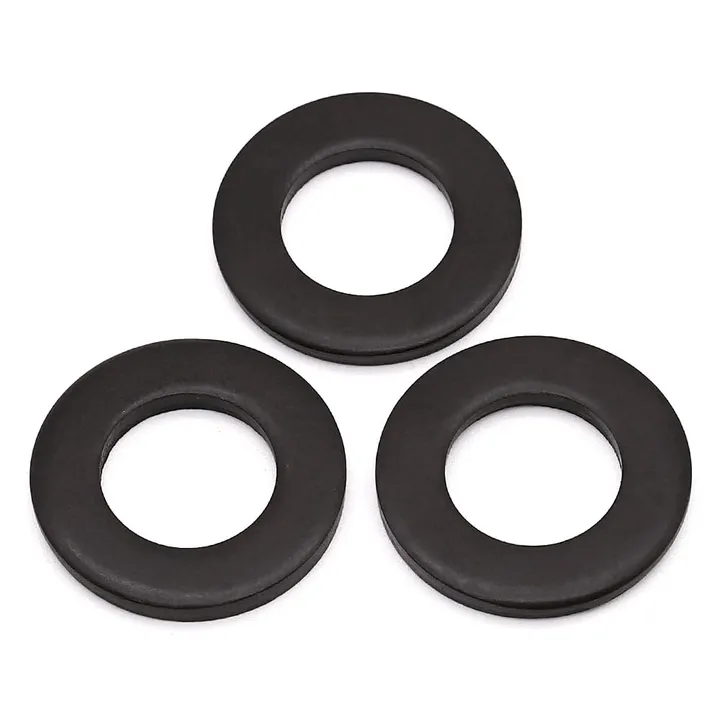

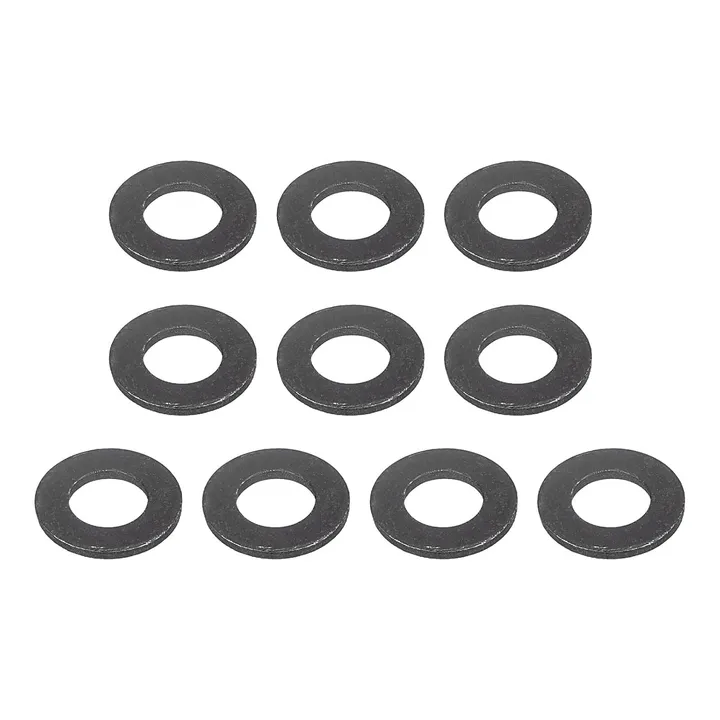

This plain washer is manufactured to DIN 125 in carbon steel with a black oxide finish. It is designed for use in bolted joints to distribute load and protect mating surfaces. The washer is available in metric sizes from M8 to M36, with corresponding inner diameters, outer diameters, and thicknesses as specified by the standard. Dimensional and mass data are provided for each size. The product is supplied with a minimum order quantity of 50 kg. It is suitable for general fastening applications where a standard flat washer is required.
Key features
- Manufactured to DIN 125
- Carbon steel with black oxide finish
- Available in metric sizes M8 to M36
- Minimum order quantity 50 kg
Applications
- Load distribution in bolted joints
- Surface protection in assemblies
- General fastening
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What information should be included in a quotation request for Flat Washer - DIN 125, Carbon Steel, Black Oxide?
Provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination.
