M6 × 40
d · mmM6
l · mm40
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100010.76
MOQ2000
1/3Bolts

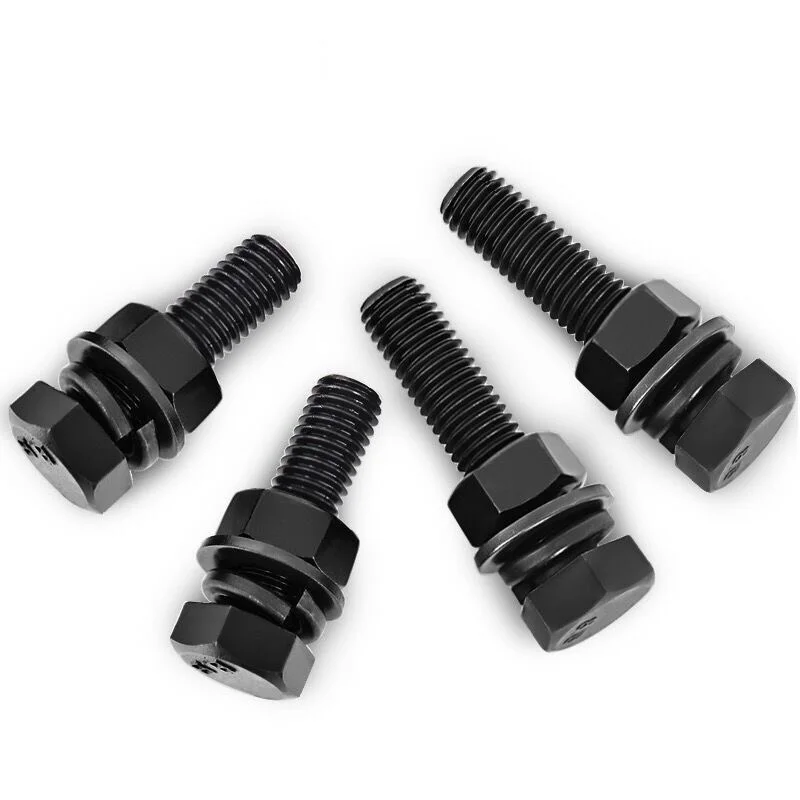

Hexagon Head Screw, Full Thread
Hexagon head screw with full thread per DIN 933.
● Available for quotation
- Standard
- DIN 933 (Historical)
- Head Form
- Hexagon Head
- Thread Type
- Full Thread
MOQ: 100 pcs · Lead time: 10 days
Share
Available options
Material
Grade
Carbon Steel
Alloy Steel
Finish
| d · mm | l · mm | P · mm | s · mm | e · mm | k · mm | Weight · kg/1000 | MOQ | Quantity / Add |
|---|---|---|---|---|---|---|---|---|
| M6 | 40 | 1 | 10 | 11.05 | 4 | 10.76 | 2000 | |
| M6 | 50 | 1 | 10 | 11.05 | 4 | 12.82 | 2000 | |
| M6 | 60 | 1 | 10 | 11.05 | 4 | 14.89 | 2000 | |
| M8 | 40 | 1.25 | 13 | 14.38 | 5.3 | 20.28 | 1000 | |
| M8 | 45 | 1.25 | 13 | 14.38 | 5.3 | 22.12 | 1000 | |
| M8 | 50 | 1.25 | 13 | 14.38 | 5.3 | 23.95 | 1000 | |
| M8 | 60 | 1.25 | 13 | 14.38 | 5.3 | 27.62 | 1000 | |
| M8 | 65 | 1.25 | 13 | 14.38 | 5.3 | 29.45 | 1000 | |
| M8 | 70 | 1.25 | 13 | 14.38 | 5.3 | 31.29 | 1000 | |
| M8 | 80 | 1.25 | 13 | 14.38 | 5.3 | 34.96 | 1000 | |
| M8 | 90 | 1.25 | 13 | 14.38 | 5.3 | 38.63 | 1000 | |
| M8 | 100 | 1.25 | 13 | 14.38 | 5.3 | 42.30 | 1000 | |
| M10 | 40 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 34.50 | 1000 | |
| M10 | 45 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 37.37 | 1000 | |
| M10 | 50 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 40.24 | 1000 | |
| M10 | 60 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 45.97 | 1000 |
M6 × 50
d · mmM6
l · mm50
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100012.82
MOQ2000
M6 × 60
d · mmM6
l · mm60
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100014.89
MOQ2000
M8 × 40
d · mmM8
l · mm40
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100020.28
MOQ1000
M8 × 45
d · mmM8
l · mm45
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100022.12
MOQ1000
M8 × 50
d · mmM8
l · mm50
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100023.95
MOQ1000
M8 × 60
d · mmM8
l · mm60
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100027.62
MOQ1000
M8 × 65
d · mmM8
l · mm65
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100029.45
MOQ1000
M8 × 70
d · mmM8
l · mm70
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100031.29
MOQ1000
M8 × 80
d · mmM8
l · mm80
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100034.96
MOQ1000
M8 × 90
d · mmM8
l · mm90
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100038.63
MOQ1000
M8 × 100
d · mmM8
l · mm100
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100042.30
MOQ1000
M10 × 40
d · mmM10
l · mm40
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100034.50
MOQ1000
M10 × 45
d · mmM10
l · mm45
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100037.37
MOQ1000
M10 × 50
d · mmM10
l · mm50
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100040.24
MOQ1000
M10 × 60
d · mmM10
l · mm60
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100045.97
MOQ1000
Corresponding-standard values are shown only where dimensions differ. The selected product standard remains the primary specification.
63 Product Specifications
Page 1/4Next
Product description
This hexagon head screw features a full thread configuration in accordance with DIN 933. It is supplied in metric diameters M6, M8, and M10, with lengths ranging from 40 mm to 100 mm as detailed in the specification samples. Head dimensions, including width across flats (s), across corners (e), and height (k), follow the standard values for each diameter. The screw is available in carbon steel, stainless steel, and alloy steel, with property classes 8.8 and 10.9. Surface finishes include hot dip galvanized, zinc plated, and blackened. Minimum order quantities vary by size, typically 1000 or 2000 pieces. This product is intended for general machinery assembly, equipment fastening, and industrial maintenance applications.
Key features
- Hexagon head form per DIN 933
- Full thread per DIN 933
- Available in M6, M8, M10 diameters
- Material options: carbon steel, stainless steel, alloy steel

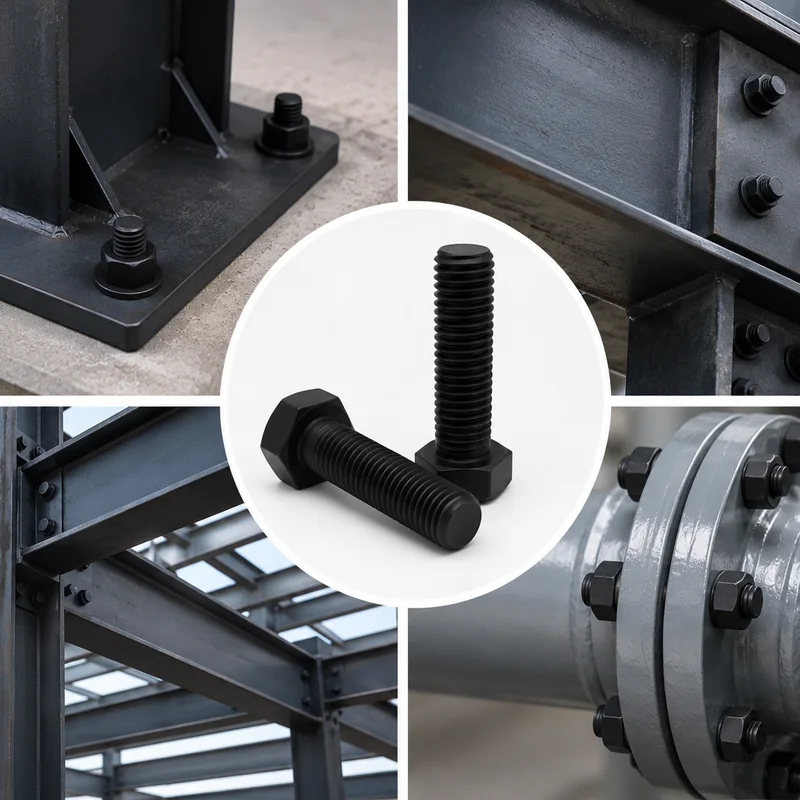

Applications
- General machinery assembly
- Equipment fastening
- Industrial maintenance
Related Products
Frequently Asked Questions
What standards and sizes are available for Hexagon Head Screw, Full Thread?
Available execution standards include DIN 933. The confirmed specification table covers M6–M24 diameters and 40–160 mm lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for Hexagon Head Screw, Full Thread?
Head Form: Hexagon Head. Availability should be confirmed against the selected specification and order quantity.
Where is Hexagon Head Screw, Full Thread commonly used?
Typical applications include General machinery assembly, Equipment fastening, Industrial maintenance. Final suitability depends on the selected material, grade, finish and operating conditions.
What information should be included in a quotation request for Hexagon Head Screw, Full Thread?
Please provide the required standard, diameter or size, length, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
