M6 × 6.1
d · mmM6
d1 · mm6.1
h · mm1.6
MOQ50KG
1/3Washers
Spring Lock Washer

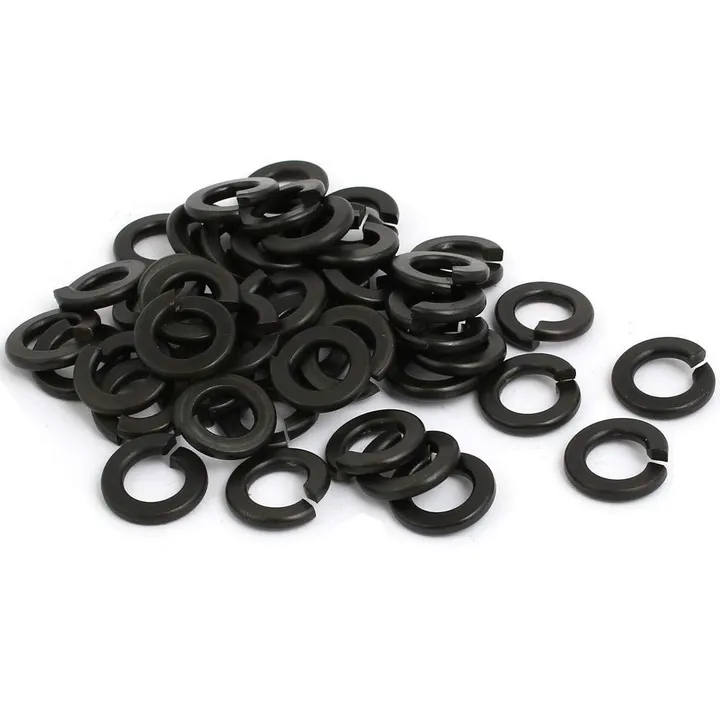

Spring lock washer manufactured to DIN 127 in 65Mn spring steel with black oxide finish.
● Made to order
- Standard
- DIN 127 (Historical)
- Finish
- Black Oxide
- Washer Type
- Spring Lock Washer
Share
Available options
Material
Finish
| d · mm | d1 · mm | h · mm | MOQ | Quantity / Add |
|---|---|---|---|---|
| M6 | 6.1 | 1.6 | 50KG | |
| M8 | 8.1 | 2 | 50KG | |
| M10 | 10.2 | 2.2 | 50KG | |
| M12 | 12.2 | 2.5 | 50KG | |
| M14 | 14.2 | 3 | 50KG | |
| M16 | 16.2 | 3.5 | 50KG | |
| M20 | 20.2 | 4 | 50KG |
M8 × 8.1
d · mmM8
d1 · mm8.1
h · mm2
MOQ50KG
M10 × 10.2
d · mmM10
d1 · mm10.2
h · mm2.2
MOQ50KG
M12 × 12.2
d · mmM12
d1 · mm12.2
h · mm2.5
MOQ50KG
M14 × 14.2
d · mmM14
d1 · mm14.2
h · mm3
MOQ50KG
M16 × 16.2
d · mmM16
d1 · mm16.2
h · mm3.5
MOQ50KG
M20 × 20.2
d · mmM20
d1 · mm20.2
h · mm4
MOQ50KG
Product description

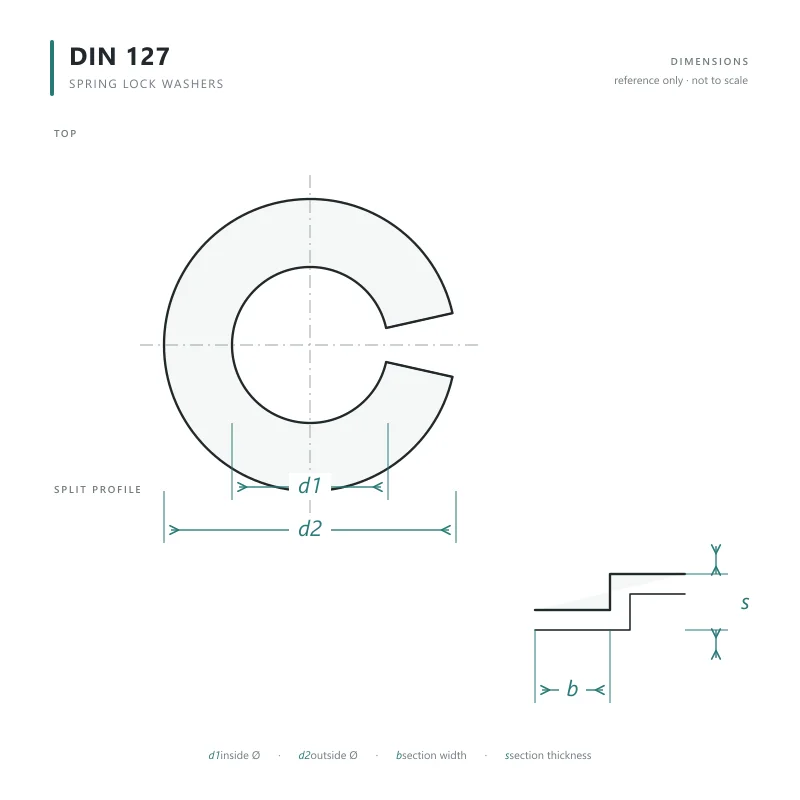

This spring lock washer is produced in accordance with DIN 127. The washer is made from 65Mn spring steel and is available with a black oxide finish. Dimensional data for sizes M6 through M20 is provided, including inner diameter (d1) and thickness (h). The product is intended for use in preloaded bolted joints, vibration-resistant assemblies, and general machinery assembly where specified. Additional finishes such as zinc plating and blackening are noted in the specification samples. Minimum order quantity is 50 kg per size. For other dimensions or requirements, please consult the manufacturer.
Key features
- Manufactured to DIN 127
- Material: 65Mn spring steel
- Finish: black oxide
- Available in sizes M6 to M20
Applications
- Preloaded bolted joints where specified
- Vibration-resistant assemblies where applicable
- General machinery assembly
Related Products
Frequently Asked Questions
What standards and sizes are available for Spring Lock Washer?
Available execution standards include DIN 127, DIN 127 / GB/T 93. The confirmed specification table covers M6–M20 diameters. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for Spring Lock Washer?
Finish: Black Oxide. Availability should be confirmed against the selected specification and order quantity.
Where is Spring Lock Washer commonly used?
Typical applications include Preloaded bolted joints where specified, Vibration-resistant assemblies where applicable, General machinery assembly. Final suitability depends on the selected material, grade, finish and operating conditions.
What information should be included in a quotation request for Spring Lock Washer?
Please provide the required standard, diameter or size, finish, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
