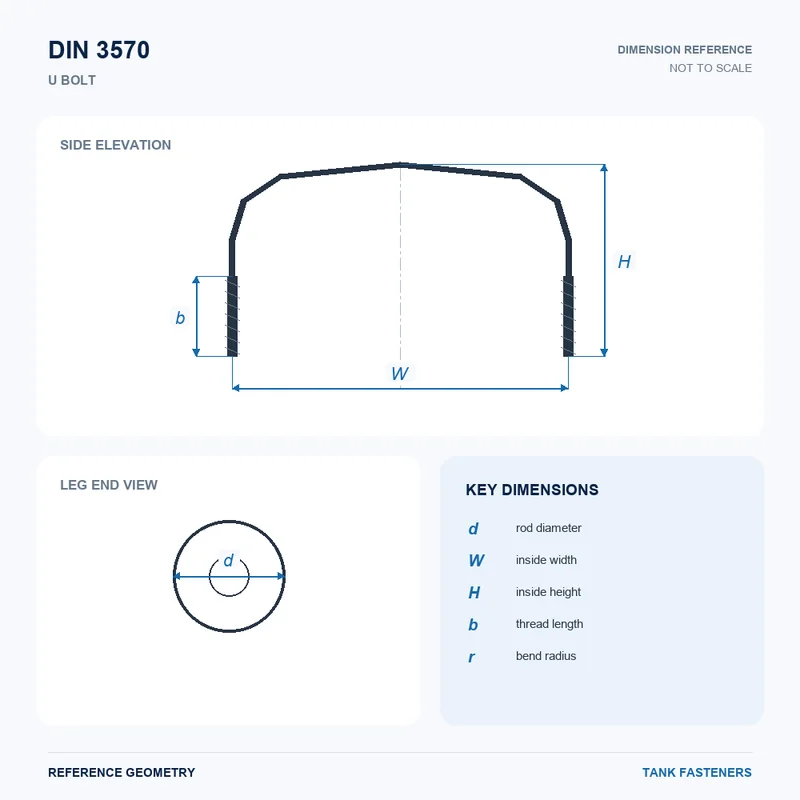

DIN 3570 | M30
dNominal Diameter · mm30
D₁Pipe OD (min) · mm25
D₁Pipe OD (max) · mm26.9
bThread Length · mm40
D₂Rod Diameter · mm10
D₃ · Thread Size / 螺纹规格M10
1/2Available options
Material
Grade
Carbon Steel
Stainless Steel
Finish
12 sizes
| dNominal Diameter · mm | D₁Pipe OD (min) · mm | D₁Pipe OD (max) · mm | bThread Length · mm | D₂Rod Diameter · mm | D₃ · Thread Size / 螺纹规格 | Quantity and inquiry |
|---|---|---|---|---|---|---|
| 30 | 25 | 26.9 | 40 | 10 | M10 | |
| 38 | 30 | 33.7 | 40 | 10 | M10 | |
| 46 | 38 | 42.4 | 50 | 10 | M10 | |
| 52 | 44.5 | 48.3 | 50 | 10 | M10 | |
| 64 | 57 | 60.3 | 50 | 12 | M12 | |
| 82 | 76.1 | 76.1 | 50 | 12 | M12 | |
| 94 | 88.9 | 88.9 | 50 | 12 | M12 | |
| 120 | 108 | 114.3 | 60 | 16 | M16 | |
| 148 | 133 | 139.7 | 60 | 16 | M16 | |
| 176 | 159 | 168.3 | 60 | 16 | M16 | |
| 228 | 216 | 219.1 | 70 | 20 | M20 | |
| 282 | 267 | 273 | 70 | 20 | M20 |
DIN 3570 | M38
dNominal Diameter · mm38
D₁Pipe OD (min) · mm30
D₁Pipe OD (max) · mm33.7
bThread Length · mm40
D₂Rod Diameter · mm10
D₃ · Thread Size / 螺纹规格M10
DIN 3570 | M46
dNominal Diameter · mm46
D₁Pipe OD (min) · mm38
D₁Pipe OD (max) · mm42.4
bThread Length · mm50
D₂Rod Diameter · mm10
D₃ · Thread Size / 螺纹规格M10
DIN 3570 | M52
dNominal Diameter · mm52
D₁Pipe OD (min) · mm44.5
D₁Pipe OD (max) · mm48.3
bThread Length · mm50
D₂Rod Diameter · mm10
D₃ · Thread Size / 螺纹规格M10
DIN 3570 | M64
dNominal Diameter · mm64
D₁Pipe OD (min) · mm57
D₁Pipe OD (max) · mm60.3
bThread Length · mm50
D₂Rod Diameter · mm12
D₃ · Thread Size / 螺纹规格M12
DIN 3570 | M82
dNominal Diameter · mm82
D₁Pipe OD (min) · mm76.1
D₁Pipe OD (max) · mm76.1
bThread Length · mm50
D₂Rod Diameter · mm12
D₃ · Thread Size / 螺纹规格M12
DIN 3570 | M94
dNominal Diameter · mm94
D₁Pipe OD (min) · mm88.9
D₁Pipe OD (max) · mm88.9
bThread Length · mm50
D₂Rod Diameter · mm12
D₃ · Thread Size / 螺纹规格M12
DIN 3570 | M120
dNominal Diameter · mm120
D₁Pipe OD (min) · mm108
D₁Pipe OD (max) · mm114.3
bThread Length · mm60
D₂Rod Diameter · mm16
D₃ · Thread Size / 螺纹规格M16
DIN 3570 | M148
dNominal Diameter · mm148
D₁Pipe OD (min) · mm133
D₁Pipe OD (max) · mm139.7
bThread Length · mm60
D₂Rod Diameter · mm16
D₃ · Thread Size / 螺纹规格M16
DIN 3570 | M176
dNominal Diameter · mm176
D₁Pipe OD (min) · mm159
D₁Pipe OD (max) · mm168.3
bThread Length · mm60
D₂Rod Diameter · mm16
D₃ · Thread Size / 螺纹规格M16
DIN 3570 | M228
dNominal Diameter · mm228
D₁Pipe OD (min) · mm216
D₁Pipe OD (max) · mm219.1
bThread Length · mm70
D₂Rod Diameter · mm20
D₃ · Thread Size / 螺纹规格M20
DIN 3570 | M282
dNominal Diameter · mm282
D₁Pipe OD (min) · mm267
D₁Pipe OD (max) · mm273
bThread Length · mm70
D₂Rod Diameter · mm20
D₃ · Thread Size / 螺纹规格M20
Product description
U-bolt manufactured to DIN 3570 for clamping pipes in construction and industrial installations. Available in carbon steel and stainless steel, with finishes including zinc plated, Dacromet, plain, and hot dip galvanized. Property classes 4.8 and A2-70 are offered. Standard sizes cover pipe diameters from 25 mm to 273 mm with M10, M12, M16, or M20 threads. Buyers should specify material, finish, property class, and required pipe diameter when requesting quotation.
Key features
- Available in carbon steel and stainless steel
- Finishes: zinc plated, Dacromet, plain, hot dip galvanized
- Property classes 4.8 and A2-70
- Covers pipe diameters from 25 mm to 273 mm
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Order assurance
Available options; exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Frequently Asked Questions
What documented quality support is available for U-Bolt for Pipe, Construction & Industrial Applications?
Documents: EN 10204 3.1 material certificate, Dimensional inspection report. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for U-Bolt for Pipe, Construction & Industrial Applications?
Confirmed packing options include Palletized shipment, Bulk carton packing.
What information should be included in a quotation request for U-Bolt for Pipe, Construction & Industrial Applications?
Provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination.
