dM6
P · mm1
eyeBaseDiameter20
eyeOutsideDiameter36
More dimensions
eyeInsideDiameter20
eyeBaseHeight6
overallHeight36
eyeThickness8
threadLength13
eyeBaseWidth10
Execution standard reference

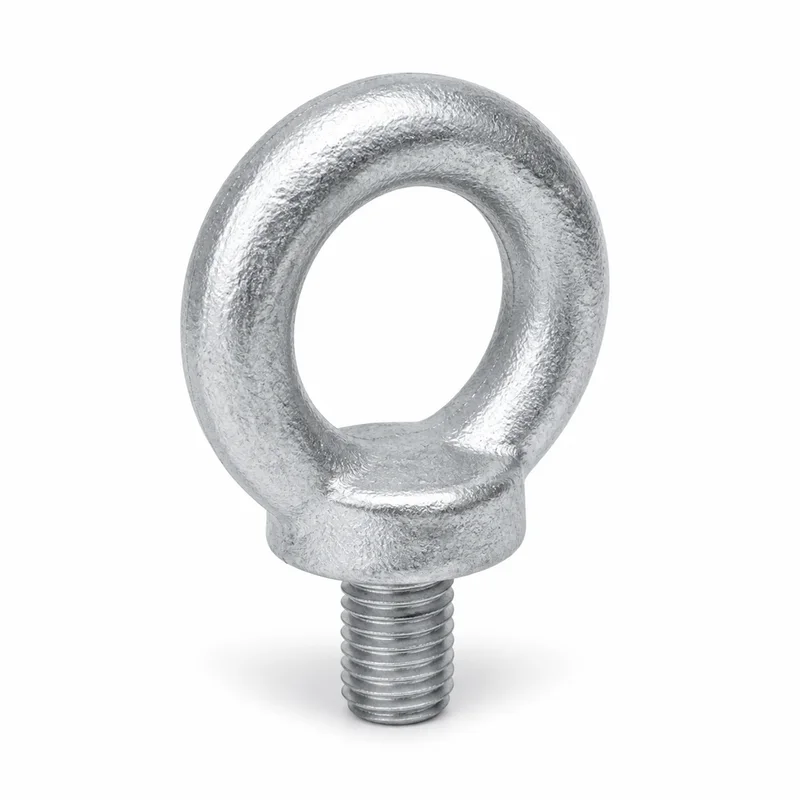

DIN 580 Lifting eye bolts
Technical reference and products currently listed under this standard. Exact contractual requirements must follow the edition specified in the purchase order.
boltCurrent standardDimensions available
Dimensional reference
Shows dimensions already stored in the standard library. Missing values are not filled automatically.
DIN 580 dimensional reference
Lifting eye bolts
| dThread size | PPitch · mm | eyeBaseDiameterd2 · Base Diameter (mm) | eyeOutsideDiameterd3 · Eye Outside Diameter (mm) | eyeInsideDiameterd4 · Eye Inside Diameter (mm) | eyeBaseHeighte · Base Height (mm) | overallHeighth · Overall Height (mm) | eyeThicknessk/s · Eye Thickness (mm) | threadLengthb · Thread Length (mm) | eyeBaseWidthm · Base Width (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M6 | 1 | 20 | 36 | 20 | 6 | 36 | 8 | 13 | 10 |
| M8 | 1.25 | 20 | 36 | 20 | 6 | 36 | 8 | 13 | 10 |
| M10 | 1.5 | 25 | 45 | 25 | 8 | 45 | 10 | 17 | 12 |
| M12 | 1.75 | 30 | 54 | 30 | 10 | 53 | 12 | 20.5 | 14 |
| M16 | 2 | 35 | 63 | 35 | 12 | 62 | 14 | 27 | 16 |
| M20 | 2.5 | 40 | 72 | 40 | 14 | 71 | 16 | 30 | 19 |
| M24 | 3 | 50 | 90 | 50 | 18 | 90 | 20 | 36 | 24 |
| M30 | 3.5 | 65 | 108 | 60 | 22 | 109 | 24 | 45 | 28 |
| M36 | 4 | 75 | 126 | 70 | 26 | 128 | 28 | 54 | 32 |
dM8
P · mm1.25
eyeBaseDiameter20
eyeOutsideDiameter36
More dimensions
eyeInsideDiameter20
eyeBaseHeight6
overallHeight36
eyeThickness8
threadLength13
eyeBaseWidth10
dM10
P · mm1.5
eyeBaseDiameter25
eyeOutsideDiameter45
More dimensions
eyeInsideDiameter25
eyeBaseHeight8
overallHeight45
eyeThickness10
threadLength17
eyeBaseWidth12
dM12
P · mm1.75
eyeBaseDiameter30
eyeOutsideDiameter54
More dimensions
eyeInsideDiameter30
eyeBaseHeight10
overallHeight53
eyeThickness12
threadLength20.5
eyeBaseWidth14
dM16
P · mm2
eyeBaseDiameter35
eyeOutsideDiameter63
More dimensions
eyeInsideDiameter35
eyeBaseHeight12
overallHeight62
eyeThickness14
threadLength27
eyeBaseWidth16
dM20
P · mm2.5
eyeBaseDiameter40
eyeOutsideDiameter72
More dimensions
eyeInsideDiameter40
eyeBaseHeight14
overallHeight71
eyeThickness16
threadLength30
eyeBaseWidth19
Dimensional profile for standard lookup, product specifications, TDS and quotation workflows.
Available products
Quote against the correct standard.
Include sizes, material, finish, quantity and required documents.
