DIN 912 | M5 x 10
dM5
L10
P0.8
s4
dk8.5
k5
MOQ12000
1/2Screws

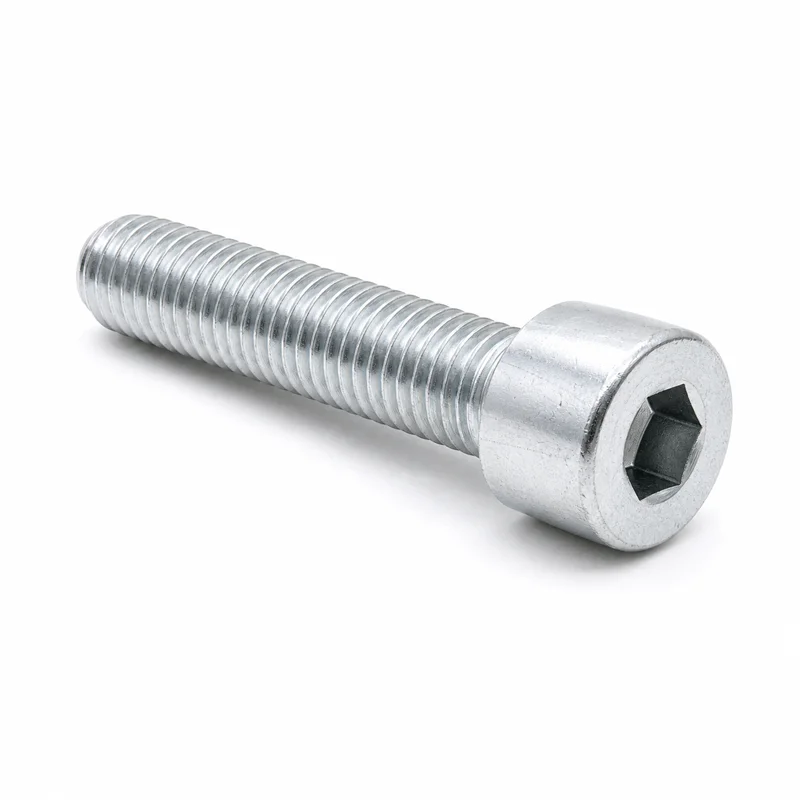

Hexagon Socket Head Cap Screw 12.9
Confirmed supply options: nominal sizes M5, M6, M8 and other confirmed options; lengths 10, 12, 16 and other confirmed options; material Alloy Steel; grade / class 12.9.
DIN 912 (Historical)
● Available for quotation
- Head Form
- Cylindrical Head
- Drive
- Hexagon Socket
- Material
- Alloy Steel
- Property Class
- 12.9
- Finish
- Blackened
- Property Class / Grade
- 12.9
Lead time: 10 Days
Share
Available options
Material
Grade
Finish
236 sizes

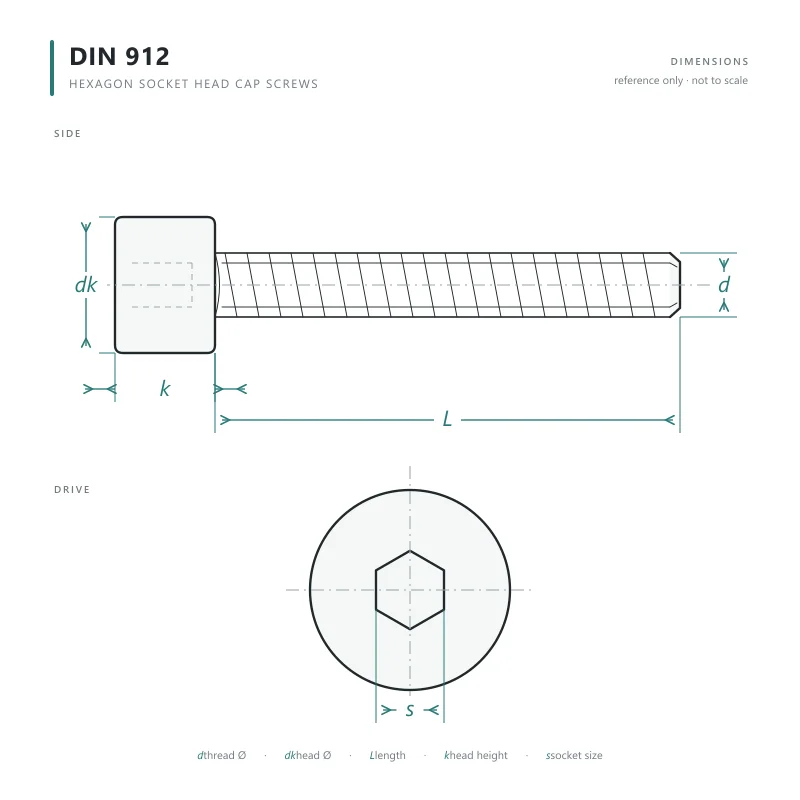

| d | L | P | s | dk | k | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| M5 | 10 | 0.8 | 4 | 8.5 | 5 | 12000 | |
| M5 | 12 | 0.8 | 4 | 8.5 | 5 | 12000 | |
| M5 | 16 | 0.8 | 4 | 8.5 | 5 | 9600 | |
| M5 | 20 | 0.8 | 4 | 8.5 | 5 | 8000 | |
| M5 | 25 | 0.8 | 4 | 8.5 | 5 | 6400 | |
| M5 | 30 | 0.8 | 4 | 8.5 | 5 | 5600 | |
| M5 | 35 | 0.8 | 4 | 8.5 | 5 | 4800 | |
| M5 | 40 | 0.8 | 4 | 8.5 | 5 | 4000 | |
| M5 | 45 | 0.8 | 4 | 8.5 | 5 | 3600 | |
| M6 | 10 | 1 | 5 | 10 | 6 | 6600 | |
| M6 | 12 | 1 | 5 | 10 | 6 | 6000 | |
| M6 | 16 | 1 | 5 | 10 | 6 | 5600 | |
| M6 | 20 | 1 | 5 | 10 | 6 | 4400 | |
| M6 | 25 | 1 | 5 | 10 | 6 | 4400 | |
| M6 | 30 | 1 | 5 | 10 | 6 | 3600 | |
| M6 | 35 | 1 | 5 | 10 | 6 | 2800 |
DIN 912 | M5 x 12
dM5
L12
P0.8
s4
dk8.5
k5
MOQ12000
DIN 912 | M5 x 16
dM5
L16
P0.8
s4
dk8.5
k5
MOQ9600
DIN 912 | M5 x 20
dM5
L20
P0.8
s4
dk8.5
k5
MOQ8000
DIN 912 | M5 x 25
dM5
L25
P0.8
s4
dk8.5
k5
MOQ6400
DIN 912 | M5 x 30
dM5
L30
P0.8
s4
dk8.5
k5
MOQ5600
DIN 912 | M5 x 35
dM5
L35
P0.8
s4
dk8.5
k5
MOQ4800
DIN 912 | M5 x 40
dM5
L40
P0.8
s4
dk8.5
k5
MOQ4000
DIN 912 | M5 x 45
dM5
L45
P0.8
s4
dk8.5
k5
MOQ3600
DIN 912 | M6 x 10
dM6
L10
P1
s5
dk10
k6
MOQ6600
DIN 912 | M6 x 12
dM6
L12
P1
s5
dk10
k6
MOQ6000
DIN 912 | M6 x 16
dM6
L16
P1
s5
dk10
k6
MOQ5600
DIN 912 | M6 x 20
dM6
L20
P1
s5
dk10
k6
MOQ4400
DIN 912 | M6 x 25
dM6
L25
P1
s5
dk10
k6
MOQ4400
DIN 912 | M6 x 30
dM6
L30
P1
s5
dk10
k6
MOQ3600
DIN 912 | M6 x 35
dM6
L35
P1
s5
dk10
k6
MOQ2800
Product description
This hexagon socket head cap screw is manufactured to DIN 912 with a cylindrical head and hexagon socket drive. The screw is made from alloy steel and features a blackened finish. It is available in property class 12.9, indicating high tensile strength suitable for demanding mechanical applications. Dimensional specifications are provided for M5 and M6 diameters with various lengths, including head diameter, head height, socket size, and thread pitch. Minimum order quantities vary by size. Typical applications include machine building, equipment assembly, and tooling fixtures. For other sizes or requirements, please consult the manufacturer.
Key features
- Cylindrical head per DIN 912
- Hexagon socket drive
- Alloy steel, property class 12.9
- Blackened finish
Applications
- Machine building
- Equipment assembly
- Tooling fixtures
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What standards and sizes are available for Hexagon Socket Head Cap Screw 12.9?
Execution standard: DIN 912. The confirmed specification table covers M5–M48 diameters and 10–300 lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for Hexagon Socket Head Cap Screw 12.9?
Material: Alloy Steel; Finish: Blackened; Drive: Hex Socket; Property Class: 12.9; Property Class / Grade: 12.9. Availability should be confirmed against the selected specification and order quantity.
What are the order, packing and sample terms for Hexagon Socket Head Cap Screw 12.9?
Lead time: 10 Days.
Where is Hexagon Socket Head Cap Screw 12.9 commonly used?
Typical applications include Machine building, Equipment assembly, Tooling fixtures. Final suitability depends on the selected material, grade, finish and operating conditions.
What information should be included in a quotation request for Hexagon Socket Head Cap Screw 12.9?
Please provide the required standard, diameter or size, length, material, property class or grade, finish, quantity. A drawing or sample reference is useful when the requirement is non-standard.
