DIN 975 | M6 x 1000
dM6
L1000
P1
1/4Threaded Rods & Studs
DIN 975 Threaded Rod
Confirmed supply options: nominal sizes M6, M8, M10 and other confirmed options; lengths 1000; material Carbon Steel; grade / class 8.8.
DIN 975 (Historical)
● Available for quotation
- Material
- Carbon Steel
- Property Class
- 8.8
- Finish
- Black Oxide / Zinc Plated / Heat-dip zinc
- Product Type
- Threaded Rod
Share
13 sizes

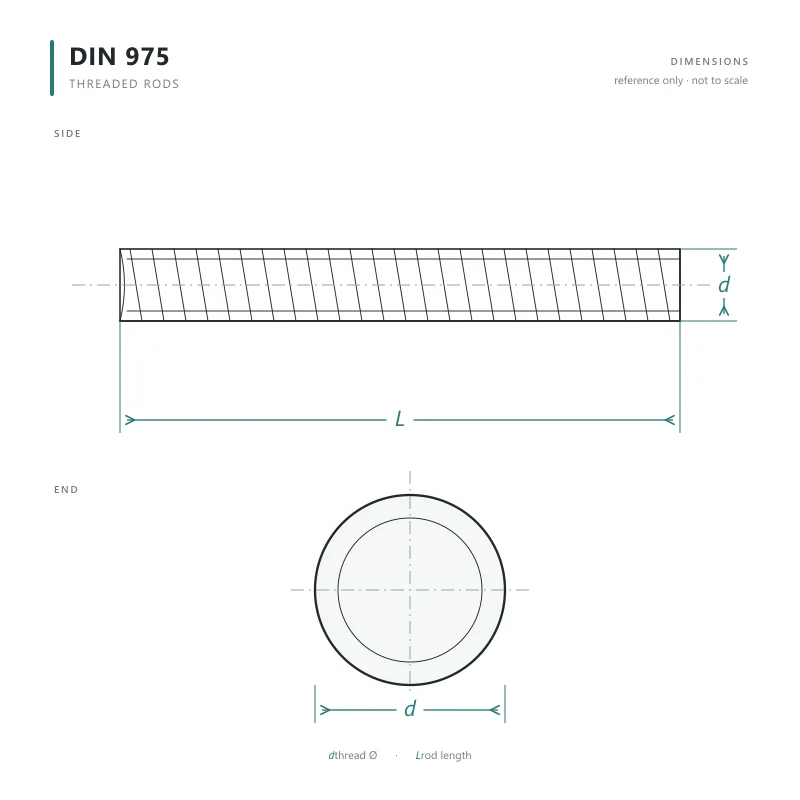

| d | L | P | Quantity and inquiry |
|---|---|---|---|
| M6 | 1000 | 1 | |
| M8 | 1000 | 1.25 | |
| M10 | 1000 | 1.5 | |
| M12 | 1000 | 1.75 | |
| M16 | 1000 | 2 | |
| M20 | 1000 | 2.5 | |
| M24 | 1000 | 3 | |
| M30 | 1000 | 3.5 | |
| M36 | 1000 | 4 | |
| M42 | 1000 | 4.5 | |
| M48 | 1000 | 5 | |
| M56 | 1000 | 5.5 | |
| M64 | 1000 | 6 |
DIN 975 | M8 x 1000
dM8
L1000
P1.25
DIN 975 | M10 x 1000
dM10
L1000
P1.5
DIN 975 | M12 x 1000
dM12
L1000
P1.75
DIN 975 | M16 x 1000
dM16
L1000
P2
DIN 975 | M20 x 1000
dM20
L1000
P2.5
DIN 975 | M24 x 1000
dM24
L1000
P3
DIN 975 | M30 x 1000
dM30
L1000
P3.5
DIN 975 | M36 x 1000
dM36
L1000
P4
DIN 975 | M42 x 1000
dM42
L1000
P4.5
DIN 975 | M48 x 1000
dM48
L1000
P5
DIN 975 | M56 x 1000
dM56
L1000
P5.5
DIN 975 | M64 x 1000
dM64
L1000
P6
Product description

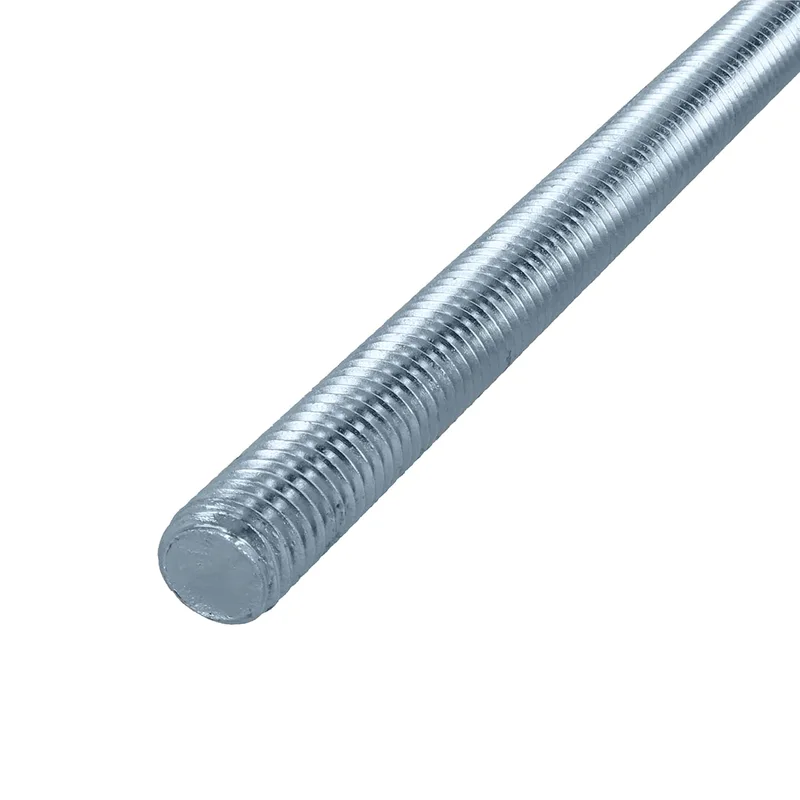

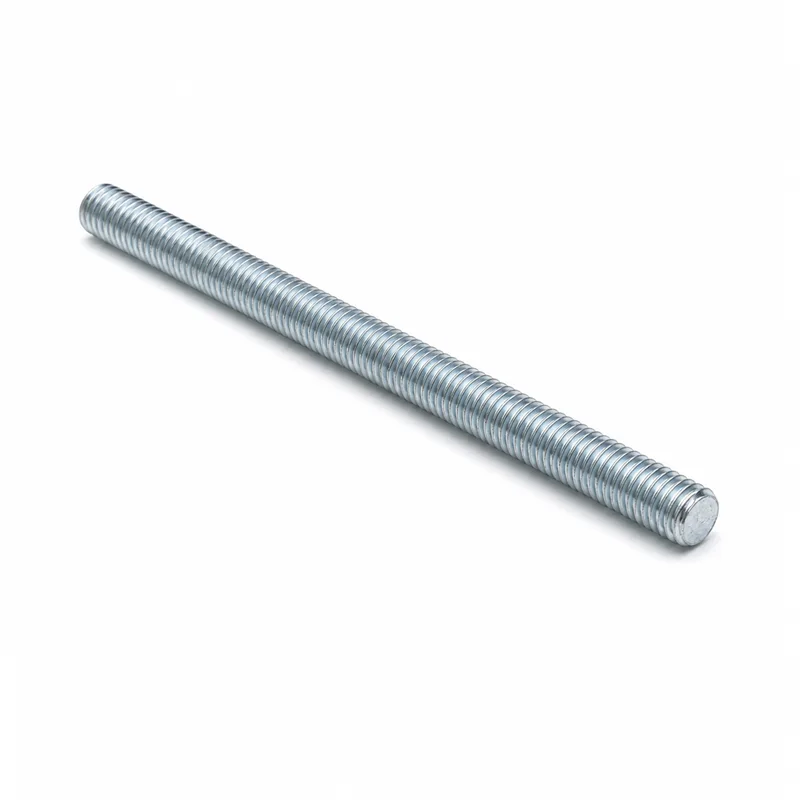

This threaded rod is manufactured to DIN 975 standards and features a full-length metric thread. It is made of carbon steel, with 45# steel also available. Standard diameter and pitch combinations range from M6 × 1.0 to M64 × 1.0, covering a variety of metric coarse thread sizes. Length and other dimensions can be customized upon request. This threaded rod is suitable for general fastening and structural applications requiring continuous external threads. For more technical details, please refer to DIN 975 standards.
Key features
- Manufactured to DIN 975
- Full-length metric thread
- Available in carbon steel, including 45# steel
- Diameter range from M6 to M64
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What standards and sizes are available for DIN 975 Threaded Rod?
Execution standard: DIN 975. The confirmed specification table covers M6–M64 diameters and 1000 lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for DIN 975 Threaded Rod?
Material: Carbon Steel; Finish: Black Oxide / Zinc Plated / Heat-dip zinc; Property Class: 8.8. Availability should be confirmed against the selected specification and order quantity.
What information should be included in a quotation request for DIN 975 Threaded Rod?
Please provide the required standard, diameter or size, length, material, property class or grade, finish, quantity. A drawing or sample reference is useful when the requirement is non-standard.
