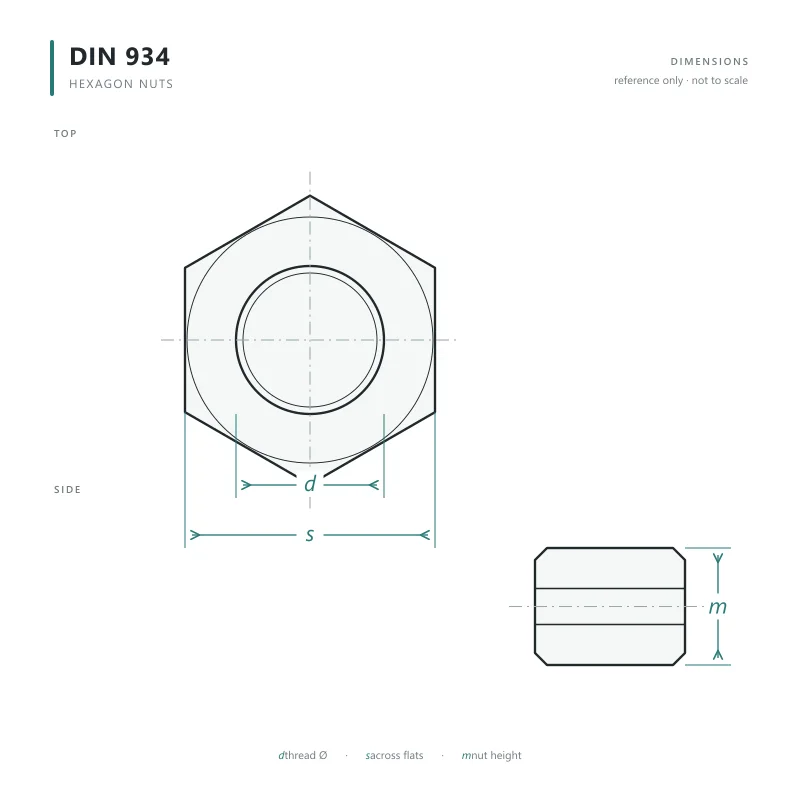

DIN 934 | M6
dNominal Diameter · mmM6
PThread Pitch · mm1
sWidth Across Flats (max) · mm10
eWidth Across Corners (min) · mm11.05
mNut Height · mm5
MOQ10000
1/3Available options
Material
Grade
Finish
14 sizes
| dNominal Diameter · mm | PThread Pitch · mm | sWidth Across Flats (max) · mm | eWidth Across Corners (min) · mm | mNut Height · mm | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|
| M6 | 1 | 10 | 11.05 | 5 | 10000 | |
| M8 | 1.25 | 13 | 14.38 | 6.5 | 5000 | |
| M10 | 1.5 | 17 | 18.9 | 8 | 5000 | |
| M12 | 1.75 | 19 | 21.1 | 10 | 5000 | |
| M14 | 2 | 22 | 24.49 | 11 | 5000 | |
| M16 | 2 | 24 | 26.75 | 13 | 5000 | |
| M18 | 2.5 | 27 | 30.14 | 15 | 5000 | |
| M20 | 2.5 | 30 | 33.53 | 16 | 1000 | |
| M22 | 2.5 | 32 | 35.72 | 18 | 500 | |
| M24 | 3 | 36 | 39.98 | 19 | 500 | |
| M27 | 3 | 41 | 45.2 | 22 | 500 | |
| M30 | 3.5 | 46 | 50.85 | 24 | 500 | |
| M33 | 3.5 | 50 | 55.37 | 26 | 500 | |
| M36 | 4 | 55 | 60.79 | 29 | 500 |
DIN 934 | M8
dNominal Diameter · mmM8
PThread Pitch · mm1.25
sWidth Across Flats (max) · mm13
eWidth Across Corners (min) · mm14.38
mNut Height · mm6.5
MOQ5000
DIN 934 | M10
dNominal Diameter · mmM10
PThread Pitch · mm1.5
sWidth Across Flats (max) · mm17
eWidth Across Corners (min) · mm18.9
mNut Height · mm8
MOQ5000
DIN 934 | M12
dNominal Diameter · mmM12
PThread Pitch · mm1.75
sWidth Across Flats (max) · mm19
eWidth Across Corners (min) · mm21.1
mNut Height · mm10
MOQ5000
DIN 934 | M14
dNominal Diameter · mmM14
PThread Pitch · mm2
sWidth Across Flats (max) · mm22
eWidth Across Corners (min) · mm24.49
mNut Height · mm11
MOQ5000
DIN 934 | M16
dNominal Diameter · mmM16
PThread Pitch · mm2
sWidth Across Flats (max) · mm24
eWidth Across Corners (min) · mm26.75
mNut Height · mm13
MOQ5000
DIN 934 | M18
dNominal Diameter · mmM18
PThread Pitch · mm2.5
sWidth Across Flats (max) · mm27
eWidth Across Corners (min) · mm30.14
mNut Height · mm15
MOQ5000
DIN 934 | M20
dNominal Diameter · mmM20
PThread Pitch · mm2.5
sWidth Across Flats (max) · mm30
eWidth Across Corners (min) · mm33.53
mNut Height · mm16
MOQ1000
DIN 934 | M22
dNominal Diameter · mmM22
PThread Pitch · mm2.5
sWidth Across Flats (max) · mm32
eWidth Across Corners (min) · mm35.72
mNut Height · mm18
MOQ500
DIN 934 | M24
dNominal Diameter · mmM24
PThread Pitch · mm3
sWidth Across Flats (max) · mm36
eWidth Across Corners (min) · mm39.98
mNut Height · mm19
MOQ500
DIN 934 | M27
dNominal Diameter · mmM27
PThread Pitch · mm3
sWidth Across Flats (max) · mm41
eWidth Across Corners (min) · mm45.2
mNut Height · mm22
MOQ500
DIN 934 | M30
dNominal Diameter · mmM30
PThread Pitch · mm3.5
sWidth Across Flats (max) · mm46
eWidth Across Corners (min) · mm50.85
mNut Height · mm24
MOQ500
DIN 934 | M33
dNominal Diameter · mmM33
PThread Pitch · mm3.5
sWidth Across Flats (max) · mm50
eWidth Across Corners (min) · mm55.37
mNut Height · mm26
MOQ500
DIN 934 | M36
dNominal Diameter · mmM36
PThread Pitch · mm4
sWidth Across Flats (max) · mm55
eWidth Across Corners (min) · mm60.79
mNut Height · mm29
MOQ500
Product description
Hexagon Nut is supplied to DIN 934 in M6–M36 diameters. Confirmed supply options include Carbon Steel, grades or classes 8 and 10, Zinc Plated and Blackened finishes.
Key features
- Hexagon form driven by standard spanners and sockets.
Applications
- Suitable for general bolted assembly, steel structure connections, and machinery and equipment assembly.
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Order assurance
Available options; exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Frequently Asked Questions
What documented quality support is available for Hexagon Nut?
Documents: EN 10204 3.1 material certificate, Dimensional inspection report. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for Hexagon Nut?
MOQ: 500–10000 pcs. Confirmed packing options include Bulk carton packing, Palletized shipment, Small boxes with outer cartons, Buyer branding and labels.
What information should be included in a quotation request for Hexagon Nut?
Provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination.
