M6 × 25
d · mmM6
l · mm25
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10007.66
MOQ2000
1/3Bolts
DIN 933 Hexagon Bolts, 8.8, 35K Carbon Steel, Part Thread
DIN933 8.8 grade hex bolts bulk supply from factory OEM.
● Available for quotation
- Standard
- DIN 933 (Historical)
- Head Form
- Hexagon Head
- Thread Type
- Full Thread
MOQ: 100 pcs · Lead time: 15 days
Share
Available options
Material
Grade
Carbon Steel
Stainless Steel
Finish
| d · mm | l · mm | P · mm | s · mm | e · mm | k · mm | Weight · kg/1000 | MOQ | Quantity / Add |
|---|---|---|---|---|---|---|---|---|
| M6 | 25 | 1 | 10 | 11.05 | 4 | 7.66 | 2000 | |
| M6 | 30 | 1 | 10 | 11.05 | 4 | 8.69 | 2000 | |
| M6 | 35 | 1 | 10 | 11.05 | 4 | 9.73 | 2000 | |
| M6 | 40 | 1 | 10 | 11.05 | 4 | 10.76 | 2000 | |
| M6 | 45 | 1 | 10 | 11.05 | 4 | 11.79 | 2000 | |
| M6 | 50 | 1 | 10 | 11.05 | 4 | 12.82 | 2000 | |
| M6 | 55 | 1 | 10 | 11.05 | 4 | 13.85 | 2000 | |
| M8 | 25 | 1.25 | 13 | 14.38 | 5.3 | 14.78 | 2000 | |
| M8 | 30 | 1.25 | 13 | 14.38 | 5.3 | 16.61 | 2000 | |
| M8 | 35 | 1.25 | 13 | 14.38 | 5.3 | 18.45 | 2000 | |
| M8 | 40 | 1.25 | 13 | 14.38 | 5.3 | 20.28 | 2000 | |
| M8 | 45 | 1.25 | 13 | 14.38 | 5.3 | 22.12 | 2000 | |
| M8 | 50 | 1.25 | 13 | 14.38 | 5.3 | 23.95 | 2000 | |
| M8 | 55 | 1.25 | 13 | 14.38 | 5.3 | 25.79 | 5000 | |
| M10 | 25 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 25.90 | 5000 | |
| M10 | 30 | 1.5 | DIN 93317ISO 401716 | DIN 93318.9ISO 401717.77 | 6.4 | 28.77 | 5000 |
M6 × 30
d · mmM6
l · mm30
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10008.69
MOQ2000
M6 × 35
d · mmM6
l · mm35
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10009.73
MOQ2000
M6 × 40
d · mmM6
l · mm40
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100010.76
MOQ2000
M6 × 45
d · mmM6
l · mm45
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100011.79
MOQ2000
M6 × 50
d · mmM6
l · mm50
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100012.82
MOQ2000
M6 × 55
d · mmM6
l · mm55
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100013.85
MOQ2000
M8 × 25
d · mmM8
l · mm25
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100014.78
MOQ2000
M8 × 30
d · mmM8
l · mm30
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100016.61
MOQ2000
M8 × 35
d · mmM8
l · mm35
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100018.45
MOQ2000
M8 × 40
d · mmM8
l · mm40
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100020.28
MOQ2000
M8 × 45
d · mmM8
l · mm45
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100022.12
MOQ2000
M8 × 50
d · mmM8
l · mm50
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100023.95
MOQ2000
M8 × 55
d · mmM8
l · mm55
P · mm1.25
s · mm13
e · mm14.38
k · mm5.3
Weight · kg/100025.79
MOQ5000
M10 × 25
d · mmM10
l · mm25
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100025.90
MOQ5000
M10 × 30
d · mmM10
l · mm30
P · mm1.5
s · mmDIN 93317ISO 401716
e · mmDIN 93318.9ISO 401717.77
k · mm6.4
Weight · kg/100028.77
MOQ5000
Corresponding-standard values are shown only where dimensions differ. The selected product standard remains the primary specification.
42 Product Specifications
Page 1/3
Product description

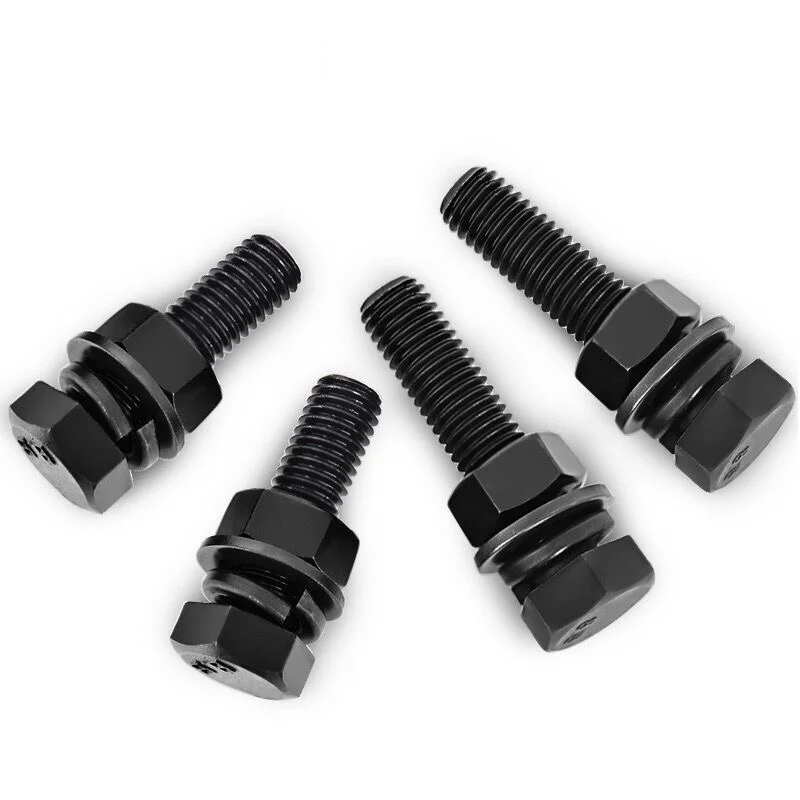

DIN933 hex bolts are fully threaded hexagon head bolts manufactured to German standard DIN 933, equivalent to ISO 4017. These bolts are made from carbon steel and heat-treated to achieve property class 8.8, offering a minimum tensile strength of 800 MPa and yield strength of 640 MPa. The threads are rolled for improved fatigue resistance, and the bolts are available in various sizes with metric coarse threads. Typical applications include structural steel connections, machinery assembly, automotive components, and general engineering where high-strength fasteners are required. As a bulk supplier and OEM manufacturer, we provide consistent quality with full traceability and can customize packaging, marking, and surface treatments such as zinc plating or hot-dip galvanizing upon request.
Key features
- Property class 8.8 high strength
- Fully threaded to DIN 933
- Rolled threads for fatigue resistance
- Bulk supply with OEM customization

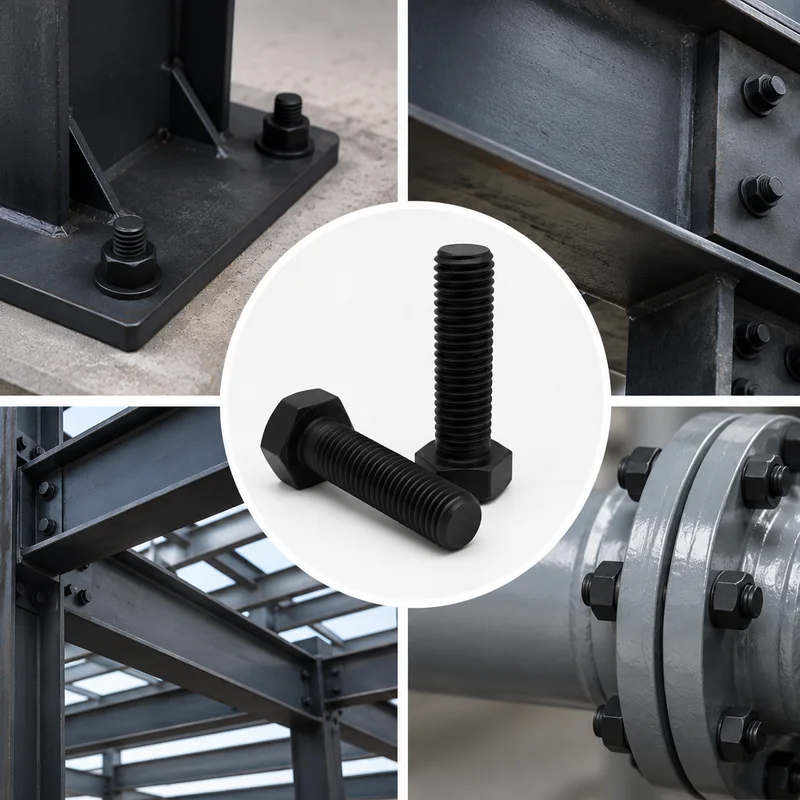

Applications
- Structural steelwork
- heavy machinery
- automotive industry
- construction equipment
- general engineering
Related Products
Frequently Asked Questions
What standards and sizes are available for DIN 933 Hexagon Bolts, 8.8, 35K Carbon Steel, Part Thread?
Available execution standards include DIN 933. The confirmed specification table covers M6–M20 diameters and 25–55 mm lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for DIN 933 Hexagon Bolts, 8.8, 35K Carbon Steel, Part Thread?
Head Form: Hexagon Head. Availability should be confirmed against the selected specification and order quantity.
Where is DIN 933 Hexagon Bolts, 8.8, 35K Carbon Steel, Part Thread commonly used?
Typical applications include Structural steelwork, heavy machinery, automotive industry, construction equipment, general engineering. Final suitability depends on the selected material, grade, finish and operating conditions.
What information should be included in a quotation request for DIN 933 Hexagon Bolts, 8.8, 35K Carbon Steel, Part Thread?
Please provide the required standard, diameter or size, length, property class or grade, finish, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
