M6 × 1000
d · mmM6
l · mm1000
P · mm1
Weight · kg/1000206.42
1/2Threaded Rods & Studs
DIN 975 Gewindestange, volles Gewinde
DIN 975 fully threaded rod in carbon steel, available in metric sizes from M6 to M64.
● Available for quotation
- Standard
- DIN 975 (Historical)
- Material
- Carbon Steel
- Property Class
- 8.8
- Finish
- Black Oxide / Zinc Plated / Heat-dip zinc
- Product Type
- Threaded Rod
Share
| d · mm | l · mm | P · mm | Weight · kg/1000 | Quantity / Add |
|---|---|---|---|---|
| M6 | 1000 | 1 | 206.42 | |
| M8 | 1000 | 1.25 | 366.96 | |
| M10 | 1000 | 1.5 | 573.38 | |
| M12 | 1000 | 1.75 | 825.67 | |
| M16 | 1000 | 2 | 1467.85 | |
| M20 | 1000 | 2.5 | 2293.52 | |
| M24 | 1000 | 3 | 3302.67 | |
| M30 | 1000 | 3.5 | 5160.42 | |
| M36 | 1000 | 4 | 7431.00 | |
| M42 | 1000 | 4.5 | 10114.42 | |
| M48 | 1000 | 5 | 13210.67 | |
| M56 | 1000 | 5.5 | 17981.19 | |
| M64 | 1000 | 6 | 23485.64 |
M8 × 1000
d · mmM8
l · mm1000
P · mm1.25
Weight · kg/1000366.96
M10 × 1000
d · mmM10
l · mm1000
P · mm1.5
Weight · kg/1000573.38
M12 × 1000
d · mmM12
l · mm1000
P · mm1.75
Weight · kg/1000825.67
M16 × 1000
d · mmM16
l · mm1000
P · mm2
Weight · kg/10001467.85
M20 × 1000
d · mmM20
l · mm1000
P · mm2.5
Weight · kg/10002293.52
M24 × 1000
d · mmM24
l · mm1000
P · mm3
Weight · kg/10003302.67
M30 × 1000
d · mmM30
l · mm1000
P · mm3.5
Weight · kg/10005160.42
M36 × 1000
d · mmM36
l · mm1000
P · mm4
Weight · kg/10007431.00
M42 × 1000
d · mmM42
l · mm1000
P · mm4.5
Weight · kg/100010114.42
M48 × 1000
d · mmM48
l · mm1000
P · mm5
Weight · kg/100013210.67
M56 × 1000
d · mmM56
l · mm1000
P · mm5.5
Weight · kg/100017981.19
M64 × 1000
d · mmM64
l · mm1000
P · mm6
Weight · kg/100023485.64
Product description

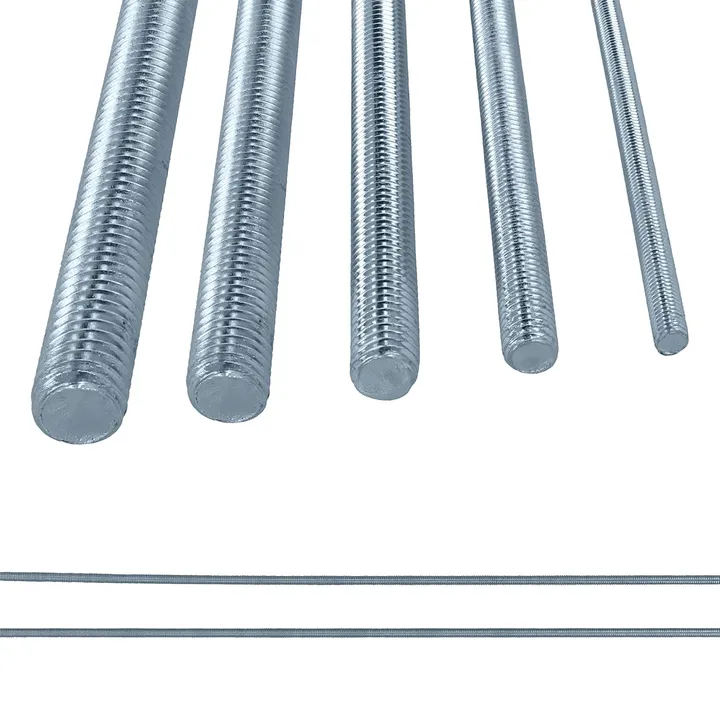

This threaded rod is manufactured to DIN 975 standards and features a full-length metric thread. It is made of carbon steel, with 45# steel also available. Standard diameter and pitch combinations range from M6 × 1.0 to M64 × 1.0, covering a variety of metric coarse thread sizes. Length and other dimensions can be customized upon request. This threaded rod is suitable for general fastening and structural applications requiring continuous external threads. For more technical details, please refer to DIN 975 standards.
Key features
- Manufactured to DIN 975
- Full-length metric thread
- Available in carbon steel, including 45# steel
- Diameter range from M6 to M64
Related Products
Frequently Asked Questions
What standards and sizes are available for DIN 975 Gewindestange, volles Gewinde?
Available execution standards include DIN 975. The confirmed specification table covers M6–M64 diameters and 1000 lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for DIN 975 Gewindestange, volles Gewinde?
Material: Carbon Steel; Finish: Black Oxide / Zinc Plated / Heat-dip zinc; Material: 45# Steel; Property Class: 8.8. Availability should be confirmed against the selected specification and order quantity.
What information should be included in a quotation request for DIN 975 Gewindestange, volles Gewinde?
Please provide the required standard, diameter or size, length, material, property class or grade, finish, quantity. A drawing or sample reference is useful when the requirement is non-standard.
